Z-Distiller
Technical Review — Final-Stage, Membrane-Free, ZLD Water Distillation System
Thermal distillation / desalination
Scope: Final-stage water separation
Status: Concept review (non-product)
1. Introduction
Z-Distiller is a thermal distillation concept designed as a final-stage water separation system.
It is not intended to replace primary desalination technologies such as reverse osmosis (RO) or multi-effect distillation (MED), but to operate downstream or independently under conditions where conventional systems become constrained.
The design emphasizes:
- membrane-free operation
- near-zero continuous electrical demand
- dry Zero Liquid Discharge (ZLD)
- tolerance to highly saline or contaminated feedwater
- minimal maintenance and slow failure behavior
2. Design Objective
The primary objective of Z-Distiller is maintaining physical separability of water when typical operational assumptions fail, including:
- membrane availability or fouling tolerance
- stable electrical power
- chemical pretreatment
- permission to discharge liquid brine
The system is optimized for robustness and simplicity, not maximum thermodynamic efficiency.
3. Core Operating Principles
3.1 Thermal Boundary Penetration

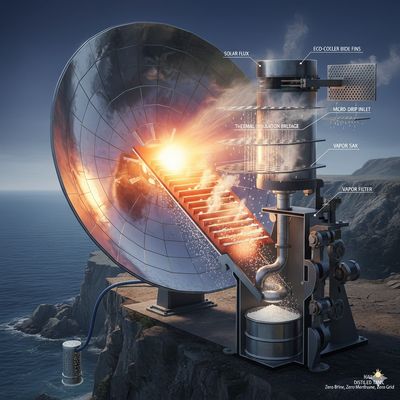

Heat is introduced through a solid metallic plate that physically penetrates the system boundary.
The external side of the plate is exposed to solar or waste heat, while the internal side interfaces with saline water.
No internal boiler or bulk liquid heating volume is used.
3.2 Thin-Film Evaporation
Feedwater is applied as a gravity-driven thin film across an inclined evaporation surface.
This avoids bulk boiling and reduces fouling and scaling accumulation.
3.3 Phase Separation by Physical Asymmetry
- Water vapor rises due to density difference.
- Crystallized salt descends due to gravity.
No membranes, valves, or active separation mechanisms are employed.
3.4 Dry Salt Formation (ZLD)
Dissolved salts crystallize on the evaporation surface and mechanically detach.
Salt exits the evaporation zone as a solid phase, eliminating liquid brine discharge.
4. Passive Multi-Stage Vapor Recovery
Z-Distiller incorporates geometry-based vapor recovery, not classical multi-effect loops.
4.1 Intermediate Recovery Plates
A series of 3–5 concave recovery plates are positioned along the vapor path.
Each plate contains 1 cm chevron (∧) protrusions that:
- disrupt vapor flow
- increase condensation surface area
- promote early water recovery
Condensate is collected via integrated micro-channels and routed to storage.
4.2 Upper Condensation Plates
2–3 upper condenser plates are installed near the vapor outlet:
- plates are tilted ~30°
- internal micro-fins enhance condensation
- external protruding fins reject heat to ambient air via natural convection
This configuration increases recovery without forced cooling or active control.
5. Salt Handling and Storage
Crystallized salt is routed into a sealed dry salt buffer isolated from ambient humidity and vapor backflow.
Residual thermal energy carried by solids promotes further drying.
Salt removal is achieved via passive mechanical transport, such as:
- gravity-assisted rails
- guided removable containers
Salt handling is decoupled from evaporation.
Interruption in removal leads to gradual capacity saturation, not system failure.
6. Performance Envelope
Z-Distiller does not target peak efficiency.
Estimated performance ranges based on physical constraints:
- Practical GOR: ~2–4
- Optimistic upper bound: ~5–6
Higher values would require active heat recovery or multi-effect architectures beyond the intended scope.
7. Comparison with Existing Systems
System Key Limitation Addressed by Z-Distiller RO Membrane dependency, brine disposal Electrical distillers High operational power demand MED / MVC Mechanical and control complexity Solar stills Low output, poor scalability
Z-Distiller is positioned as a terminal or auxiliary system, not a primary production unit.
8. Intended Applications
- RO backend brine termination
- Emergency or fallback distilled water supply
- Remote or infrastructure-limited environments
- Facilities requiring predictable failure behavior
9. Limitations
- Not optimized for lowest cost per liter
- Not suitable for large-scale continuous industrial production
- Requires thermal input and physical space
- Output limited by passive heat rejection
10. Conclusion
Z-Distiller demonstrates that membrane-free, low-power, dry ZLD distillation is achievable using only fundamental physical processes.
The design prioritizes simplicity, inspectability, and slow degradation over maximum efficiency, making it suitable as a final-stage or contingency water separation system.
